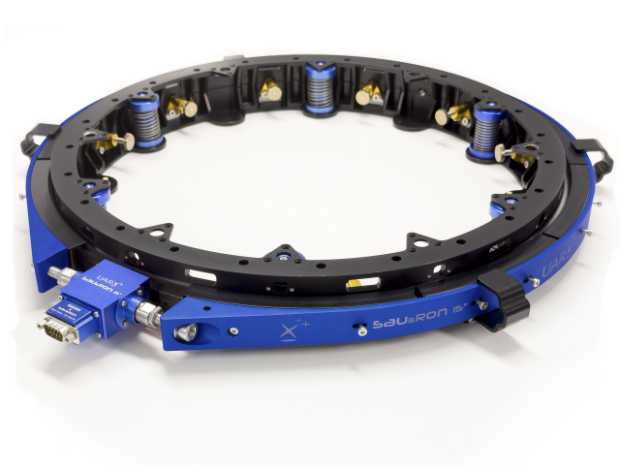

Separation Adapter Unit & Ride-On - 15-inches
High-stiffness 15-inch separation ring providing a standard, low-shock interface for compact small-sat missions that can't afford deployment surprises.
Configurable springs, redundant actuators and generous umbilical capacity keep your payload firmly restrained through launch and cleanly released on cue.
Starting from < 3.5 kg
50mm
< 1 kg
*Lightweight version available for spacecraft with mass below 150 kilograms.
420 kg (limited by CoG height)
24 x 1/4 inch bolts, according to the 24-inches ESPA interface (or 24 x M6)
24 x 1/4 inch bolts, according to the 15-inches ESPA interface (or 24 x M6)
0.1 to 3.0 Joules (Customizable to user needs)
< 1000 ms
Customizable from 0.1 m/s to 0.9 m/s (mass dependant)
The overall system mass can limit the maximum relative separation velocity.
< 30 g's @ 1 kHz (Low shock)
*Value obtained by test.
Redundant proprietary actuator
100 ms max.
12V to 36V
28V ± 4V
1000 ms pulse with < 3 A (typical)
15 pin, negative insertion force connector. Up to 3 A per pin.
Up to 4 connectors can be added around the ring. Typically they are used for grounding, power, and data separately.
Every ring is tuned for the highest standards in stiffness and durability, so your payload is secured through launch and deployed with pinpoint accuracy.
Decades of launchcampaign experience are combined with the same hardware expertise used to design our high-performance deployment systems, so challenges are identified early, resolved rapidly and documented clearly for your next mission milestone.
Your dedicated launch services team coordinates payloads, interfaces and campaign timelines across partners to give you a single, technically fluent point of contact who keeps launch opportunities qualified, open and realistic for your mission.
